FineLimit-M125 (120VAC Power)
FL-M125 AC
New product

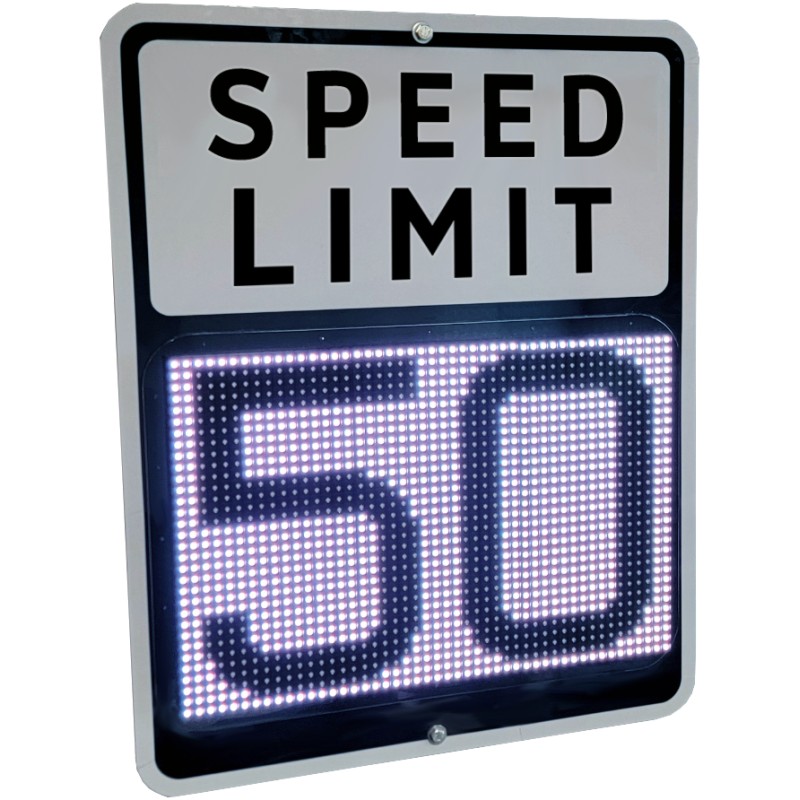

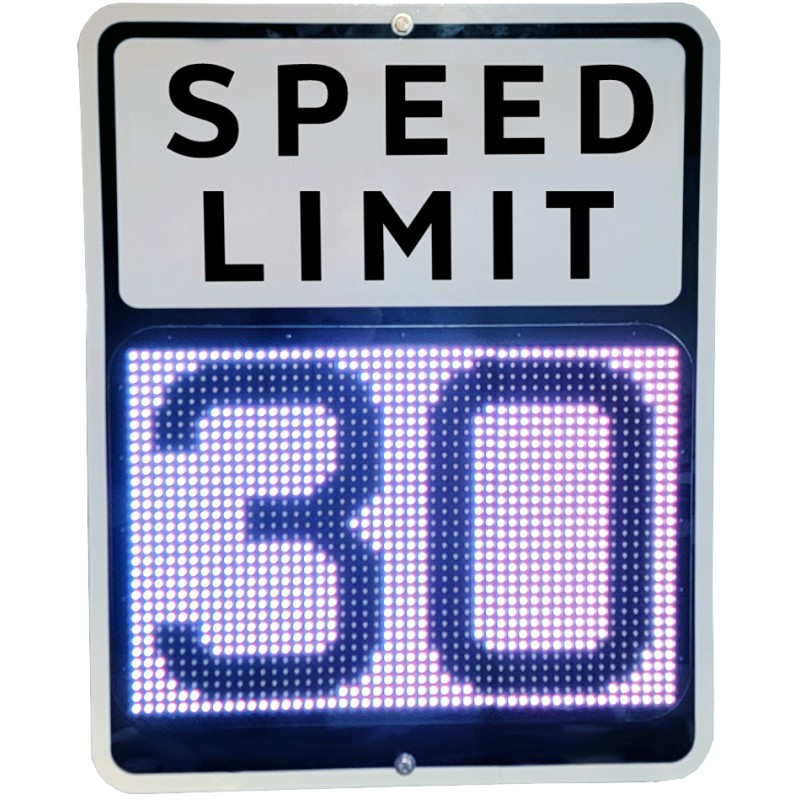

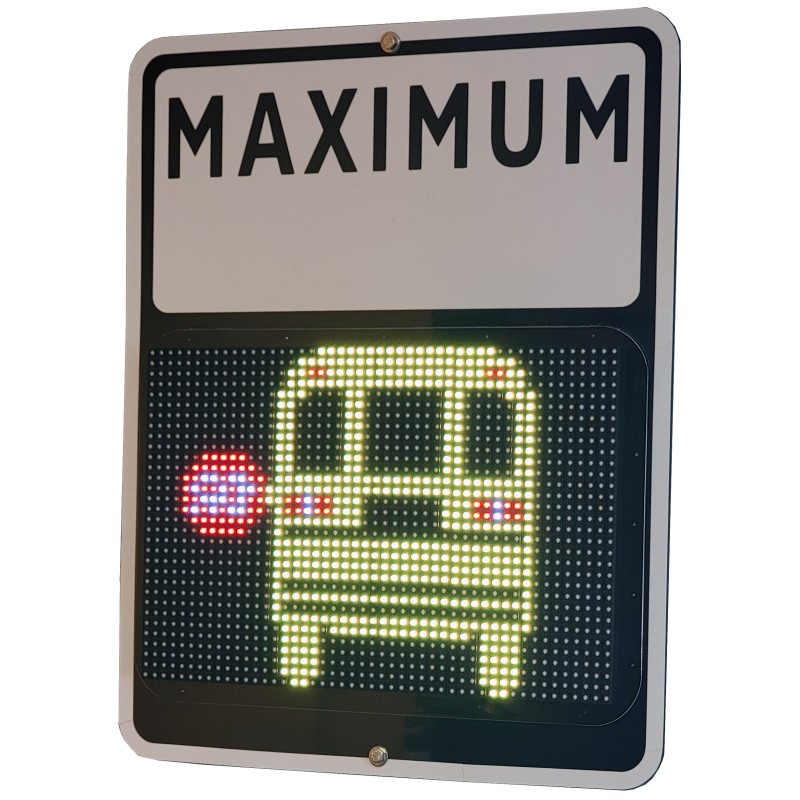

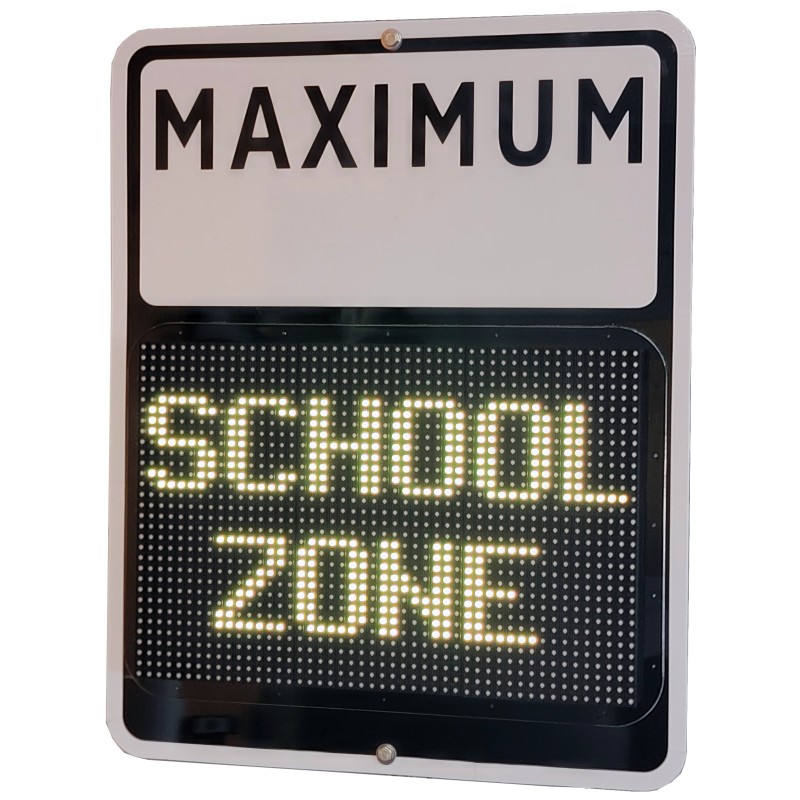

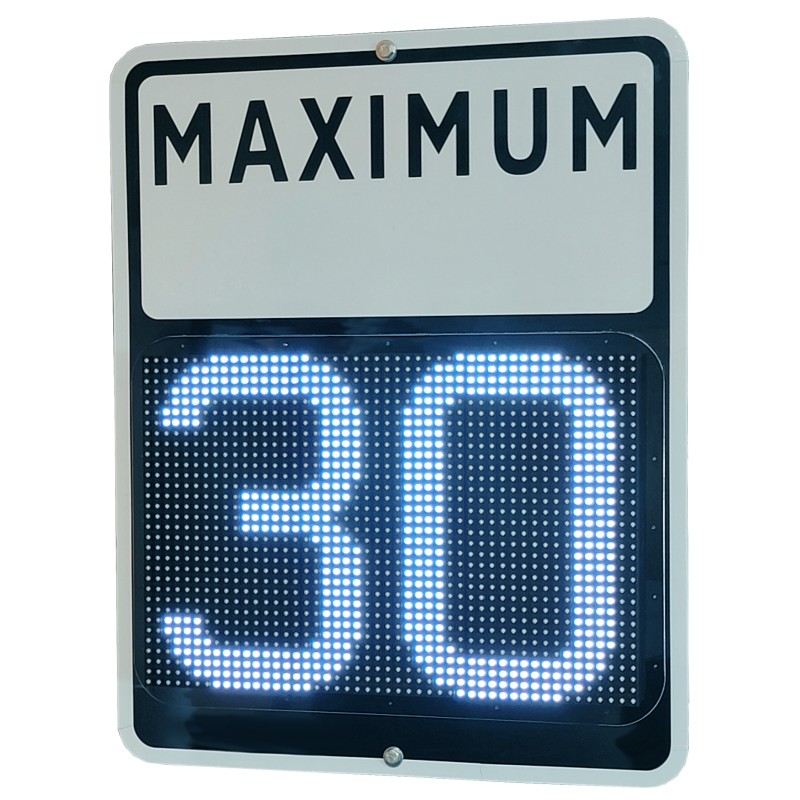

FineLimit-M125 is our advanced Electronic Variable Speed Limit Sign (VSLS), transforming school zone safety. This solution allows scheduled speed limit adjustments, featuring a full matrix LED display for dynamic or static digits, messages and pictograms aligned with school schedules.
More info
FineLimit-M125 excels with an intelligent brightness control system, adapting luminosity to ambient light for optimal visibility day and night. Its lightweight, slim design mirrors a standard Speed Limit Sign, ensuring seamless integration without sacrificing aesthetics.
Combining technical prowess, energy efficiency, and discreet design, FineLimit-M125 is the ultimate choice for dynamic and efficient traffic communication in school zones. Elevate safety with this innovative solution.
TNSense.
FineLimit-M125 introduces an innovative dimension to traffic management by wirelessly integrating with TNSense Smart traffic radars and pedestrian-activated mid-block crosswalks. This advanced connectivity
Free Software Suite Included
- Professional multilayer matrix graphic editor for Windows.
- Bluetooth or USB Sign management software for Windows - upload/download images, edit schedules and calendars, modify parameters, switch modes of the signs.
- Quick mode override for Android smartphones.
|
Feature |
Value |
|

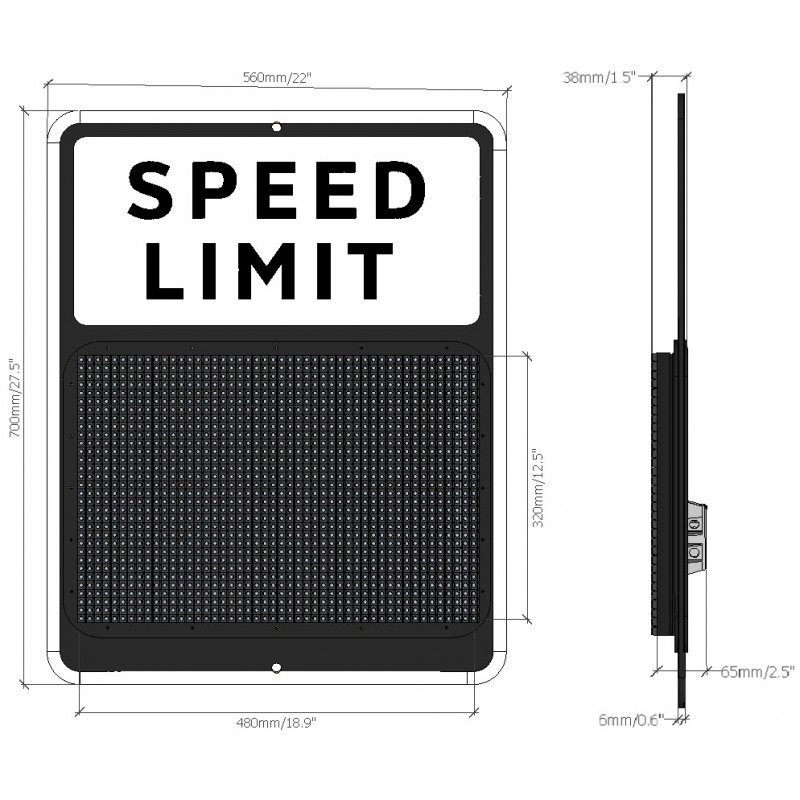

Physical Size |
|
|
Sign Size (Width x Height) |
22” (560mm) x 27.5” (700mm) |
|
Composite panel width |
0.6” (6mm) |
|
Sign Panel + Display width |
1.5” (38 mm) |
|
Maximal sign width |
2.5” (65mm) |
|
Material |
Plastic Composite, Vinyl |
|
Enclosure rating |
NEMA 4X, IEC529-IP65 |
|
Unit weight |
15 lb. (6.9 kg) |
|
Display Parameters |
|
|
Display Size (Width x Height) |
18.9” (480mm) x 12.5” (320mm) |
|
Display Resolution |
48 pixels x 32 pixels |
|
Pixels Pitch |
0.4” (10mm) |
|
Brightness |
7000cd/m2 |
|
Viewing angle |
120°/90° |
|
Power requirements |
|
|
Max. power consumption |
3.2A / 45 Watt |
|
Typ. power consumption |
15 Watt |
|
Input voltage range |
12V to 18V |
|
AC Power Supply option |
120 VAC, 60Hz |
|
Other Parameters |
|
|
Operating Temperature |
-30C to +60C |
|
Mounting type |
Stainless Steel brackets (included) |
